BRX01 LC70 [ KIT ]

Length: 462mm (chassis) / 523mm (with body)
Front Track Width: 188mm
Rear Track Width: 184mm
Ground Clearance: 26mm
Weight: 1880g (chassis) / 2560g (with body)
Height: 132mm
Wheelbase: 313mm

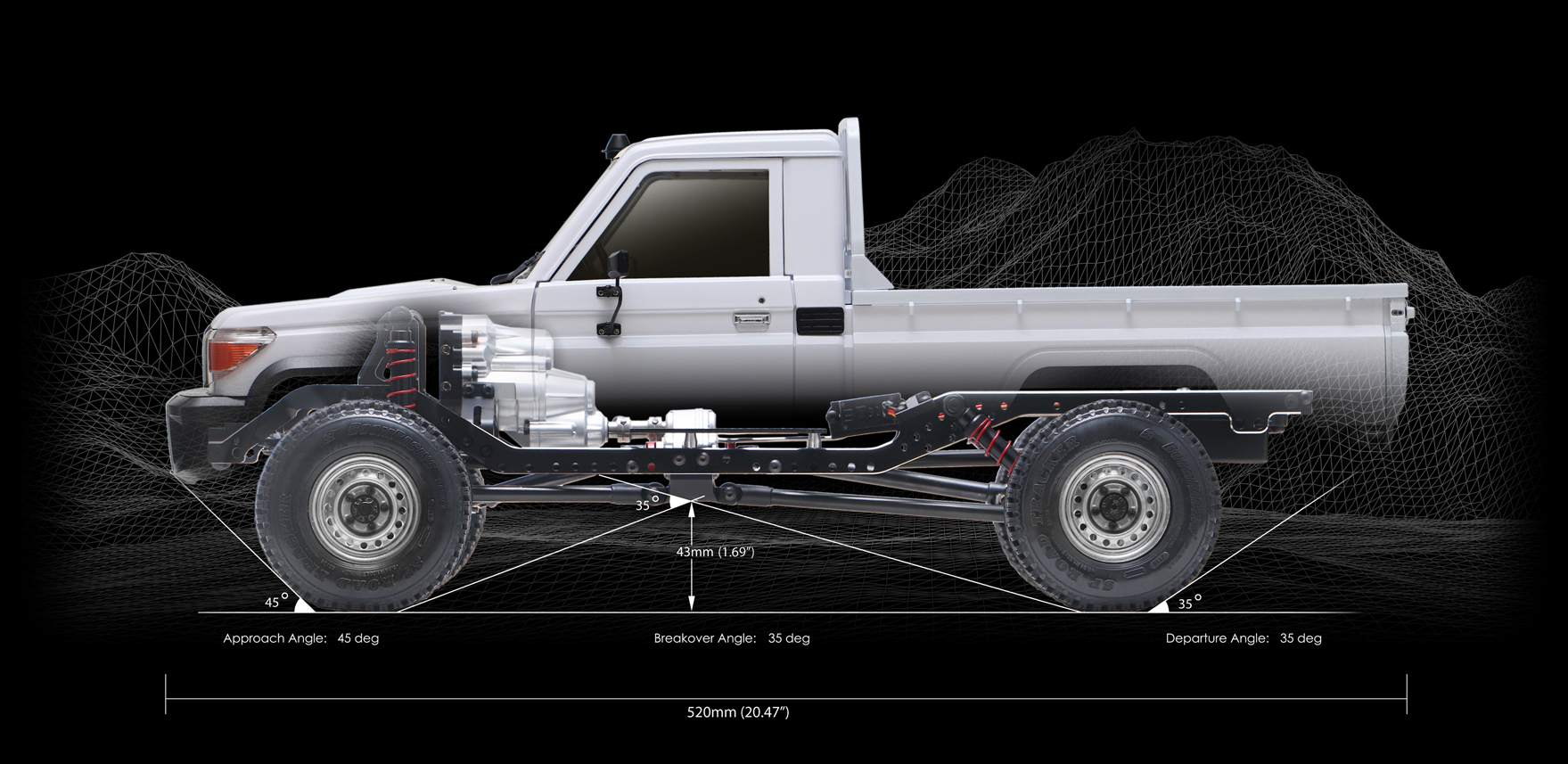

Approach Angle: 45 degree (with body)
Departure Angle: 35 degree (with body)
Breakover Angle: 35 degree (with body)
Front Shock Length: 80mm
Rear Shock Length: 80mm
Wheels: 1.55" Internal Beadlock
Tires: 3.46" x 0.94" (88mm x 24mm)
Hex Size: 12mm
Motor Size: 540/550 (not included)
Transmission: 2-speed Hi-Lo, Remote Shifting
Transfer Case: Anti-Torque Twist w/ Selective Rotational Drive (SRD)
Gear Pitch: 32P Pinion/Spur, 48P T-Case
Chassis Structure/Material: 7mm Billet Machined Aluminum
Drive System: Full Time Shaft Driven 4WD
Steering: Chassis Mounted Servo
Suspension: Front 3 Link Panhard and Rear Triangulated 4 Link

The BRX01 includes an all-new JX Waterproof Metal Gear shift servo.

Model	JX/PDI-1151MG
Dead Band:	4μs 1520μs/330hz
Voltage Range:	4.8V – 6V
Motor:	High Quality Core Motor
Operating Speed (4.8V):	0.12sec / 60°
Operating Speed (6.0V):	0.1sec / 60°
Stall Torque (4.8V):	3.1kg.cm
Stall Torque (6.0V):	3.6kg.cm
Dimensions:	30 x 12.5 x 29.1mm
Weight:	15g
Connector Wire Length:	JR 310mm
Tooth Count:	25
